100-ton Cast Steel Base Flat Vulcanizing Machine - Hot Press Molding Machine For Rubber Shoe Soles - Four-column Type With Two Working Layers

Markenbezeichnung:	Beishun
Modellnummer:	XLB-700*700
MOQ:	1 SATZ
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	L/C, T/T
Versorgungsfähigkeit:	30 Sätze/60 Tage

Einzelheiten

Produktbeschreibung

Einzelheiten

Herkunftsort:

Qingdao

Zertifizierung:

ISO/CE

Stromspannung:

220V/380V/400V/440/

Durchmesser des Kolbeners:

250mm

SPS:

Mitushibi, Siemens. Das ist nicht wahr.

Spannkraft:

100T

Tageslicht auf der Platte:

200mm

Kontrolltyp:

CNC

Kolbendurchmesser:

200mm

Arbeitsschicht:

Als Ihre Anforderungen

Heizplatte-Größe:

900x900mm oder nach Ihren Wünschen

Kontrollsystem:

SPS-Steuerung mit Touchscreen

Zykluszeit:

1-10 Minuten

Kühlmethode:

Wasserkühlung

Elektrische Teile:

Chnt, Schneider, Siemens usw.

Hydraulikeinheit:

Rexroth, Huade, Yuken, Sieben Ozean

Heizungsart:

Elektrische oder Öl- oder Dampfkraft

Spezifikation:

Entsprechend den Anforderungen des Kunden

Verpackung Informationen:

40GP

Hervorheben:

100-ton cast steel vulcanizing machine

hot press molding machine for rubber soles

four-column vulcanizing press with two layers

Produktbeschreibung

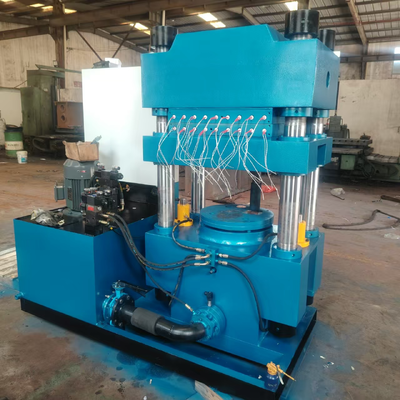

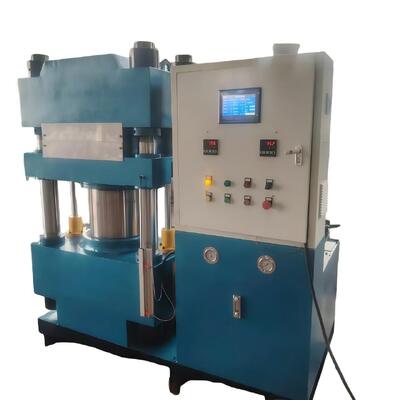

100-ton Cast Steel Base Flat Vulcanizing Machine

Hot press molding machine for rubber shoe soles - four-column type with two working layers

Machine Overview

Our 100-ton four-column flat vulcanizing press is specifically engineered for hot press molding of rubber shoe soles. Featuring a solid cast steel base and two independent working layers, this machine delivers high rigidity, exceptional productivity, and reliable performance, making it the preferred choice for shoe sole manufacturers worldwide.

Main Structure & Key Features

Four-Column Structure: Classic four-column guiding design ensures stable operation under long-term high pressure, maintains parallel movement of platens, prevents deviation during pressing, and guarantees consistent thickness and appearance of finished rubber shoe soles.
Cast Steel Base: Heavy-duty cast steel construction provides superior shock resistance, enhanced load-bearing capacity, and minimal deformation compared to welded frames, maintaining high precision even in demanding workshop environments.
Two Working Layers: Two independent working layers double production capacity within limited floor space, enabling continuous production through alternating mold loading and unloading operations.
100-Ton Rated Pressure: Standard working pressure of 100 tons meets all vulcanization and molding requirements for various rubber materials, with hydraulic system ensuring stable, even pressure distribution across the entire platen.

Core Advantages for Rubber Shoe Sole Production

High Production Efficiency: Two-layer layout maximizes workshop utilization and output, ideal for mass production of casual shoes, sports shoes, and slipper rubber soles.
Stable Molding Quality: Four-column guidance and cast steel base eliminate vibration and platen deflection, ensuring uniform density and smooth surface finish.
Durable & Low Maintenance: High-strength cast steel body and quality hydraulic components reduce failure rates and minimize long-term operating costs.
Easy Operation: User-friendly control system with simple operational procedures enables quick worker training and seamless integration into large-scale workshops.

Application Scope

This 100-ton two-layer flat vulcanizing hot press is primarily used for hot press vulcanization and molding of various rubber products, particularly ideal for:

Rubber shoe soles
Rubber insoles
Rubber slipper parts
Small rubber accessories for footwear

Technical Parameters

Spec Item	XLB-DQ 350×350	XLB-DQ 400×400	XLB-DQ 600×600	XLB-Q 1200×2700	XLB-Q 1400×3200	XLB-Q 1500×6000	XLB-Q 1800×10000
Total pressure (KN)	250	500	1000	7500	10300	25200	56000
Hot-plate unit pressure (MPa)	2.1	3.1	2.7	2.3	2.3	2.8	3
Max plunger stroke (mm)	250	300	300	250	250	300	300
Hot-plate size (mm)	350×350	400×400	600×600	1200×2700	1400×3200	1500×6000	2000×10000
Plate layers	2-4	2-4	2-4	1	1	1	1
Max. working oil pressure (MPa)	12	12	16	12.5	14.5	15.5	16
Total heating power (kW)	12	12	20	-	-	-	-
Overall dimensions L (mm)	1260	1260	1350	3000	3400	6400	10500
Overall dimensions W (mm)	560	560	750	1830	2360	2520	3250
Overall dimensions H (mm)	1650	2200	1800	2224	3050	3420	4670
Approximate weight (t)	~2	~2.2	~3	~22.7	~27	~60	~186

Conclusion

Our 100-ton four-column two-layer vulcanizing press offers a cost-effective, high-efficiency solution for rubber shoe sole production. The robust cast steel structure, stable hydraulic performance, and dual working layers provide reliable support for long-term mass production requirements.

We provide detailed technical parameters, customized mold matching solutions, and comprehensive after-sales service. Contact us for quotations and additional information.
